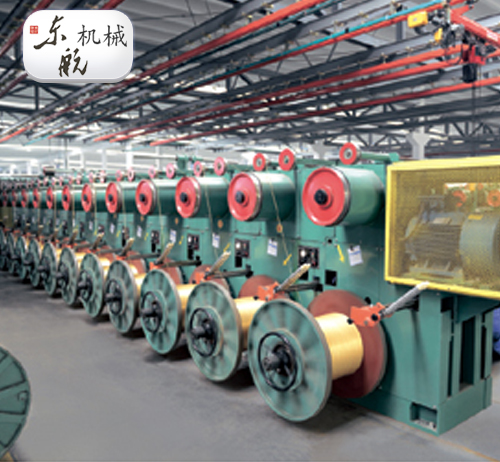

56-wire collective drive pay-off and take-up for plating

Number of wire seats: 56

Speed: DV76, maximum speed: 70m/min.

Steel wire height: 915mm for pay-off, 2080mm for coil in

Steel wires interval: 20mm

Pay-off station: 28+28

Pay-off spool: φ1000

Spools are horizontally installed in dual design, i.e. one for operation and the other for standby, switch between spools manually

Pay-off tension control: by copper base friction belt, tension control range: 600-2200g

Pay-off port is installed with contact type break protection device

Take-up rack is a welded rack

Total number of wires in range of take-up capacity: 60, group control

Four sets of 22Kw motors for wire take-up and 2 sets of 0.75Kw motors for winding displacement

Take-up spool: φ800 (1T)

Take-up spool is horizontally suspended installed and equipped with lizfting apliances.

Traction wheel diameter: φ350, with surface WC coated at a surface hardness in range of HRC60~62.

Control of winding displacement in range of 5 ~ 10mm can be achieved at both ends, winding displacement sensor can be regulated at terminal (both ends), gear and rack drive system is adopted for transmission.

Winding tension control: friction clutch, regulation of torque is achieved by pneumatic control; copper base friction belt is adopted for friction purpose.

Univeral coupling is designed and installed for gearing-down
