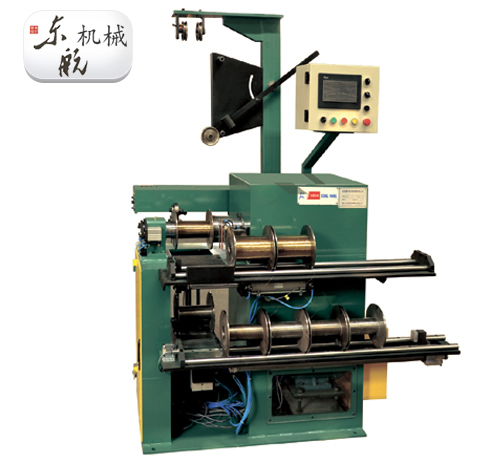

Automatic wheel change take-up machine

Form and pattern: platform, belt winding displacement and constant tension control take-up machine

Take-up wheel type and model: ф188 spool (ф68xф188x164-181), (may be custom-made up to customer demand)

Number of wheels for automatic change: 6 wheels

Winding displacemetn: servo motor(planetary transmission) driven and synchronous belt clamped (servo motor 400W)

Elevation: rodless cylinder (drive motor for large wheel)

Wire break: fusing

Take-up motor: 2.2kw VF motor

Brake: pneumatic disc break.

Spool clamp: two-way clamp by cylinder for air cut protection

Applicable for take-up winding of various types of water tank wire-drawing machine
