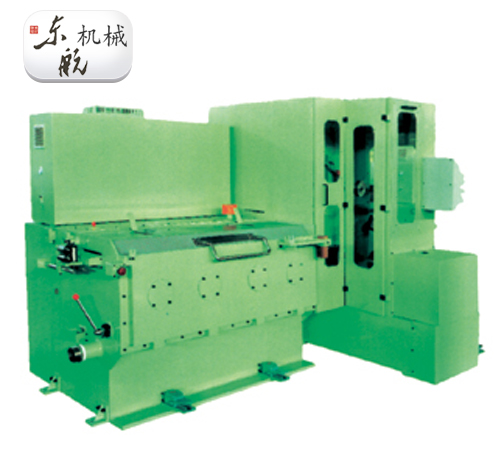

Wire-cutting water tank wire-drawing machine

Machine pattern: vertical water tank, sprinkler or immersed type circulating lubrication

Drawing material: high carbon steel wire

Drawing rounds: 22 rounds

Maximum speed: 20m/s

Machinery compaction ratio: 15% for the first 21 rounds, 8% for last round, i.e. coil out

Diameter of coil in: φ0.70mm-φ1.1mm

  Diameter of coil in: φ0.10mm-φ0.14mm

Drawing strength for coil in: 1350Mpa-1500Mpa

Drawing strength for coil out: 3200Mpa~3800Mpa

Surface treatment of step pulleys: WC spray coated up to a hardness of HRC62±2

Driving motor: 15Kw

Take-up drive motor: 5.5Kw

Winding displacement: automatically by synchronous belt that driven by servo motor of 0.4Kw, with offset function

Speed regulating: ACVF stepless speed change

Electrical control: PLC control, multi-function automatic protection, equipped with touch screen.

Noise: ≤85db

 size: 2600x1910x1985mm5mm
