TR stranding machine

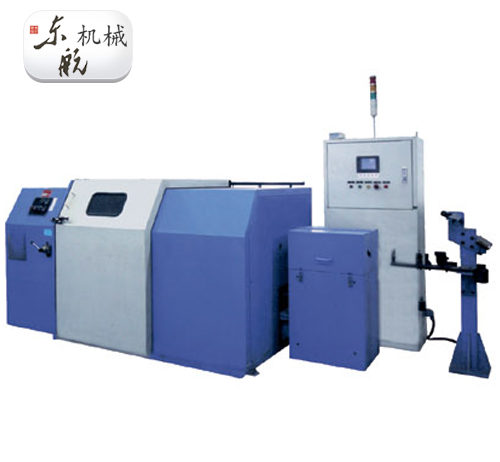

Stranding machine of Model TR is mainly consisting of core strand pay-off (twisting) device, upper thread pay-off device, cord guide rack, front over-twist device, twisting take-up device (mainframe) and electric control cabinets etc.

Twined twister of model TR is capable of twisting to strand a high carbon steel wire at diameter ranging from 0.17 to 0.23. It’s also capable of twisting and stranding steel wires of various core strand structures.

1.Work material: brass plated individual thread, high carbon steel wire

2. Tensile strength : 280-320kg/mm2

3.Diameter of individual thread:φ0.17mm/φ0.35mm

4.Structure of cord thread: 3+9+15*0.17、3+8+13*0.22

5.Maximum diameter of cord thread:φ1.38mm

(二）Core thread pay-off (twisting) device

1. Spool size: 305+305

2.Spool quantity: 2+1

3.Twisting direction: s/z

4.Flywheel speed of revolution: 3500 rpm/9 (maximum)

(三）Individual thread pay-off device

1.Spool size: φ610*φ250*465 (610 spool)

2.Spool quantity: 15

3.Overhead pay-ff tension controld device: 15 lots

(四）Twisting take-up device (mainframe)

1.Applicable spool: B40、B60，B80，305，320 wheel

2.Twisting direction: s/z

3.Twisting pitch: 16，17，18mm±0.5mm

4.Winding displacment: reciprocating screw

5.Control of winding displacement: 6.4mm (B40、F75)、6.08mm (B80)

6.Flywheel speed of revolution: 3500rpm/minute (maximum)

7. Motor power factor：15KW*4P

8. Fan power factor：0.55KW*2P(380V)
