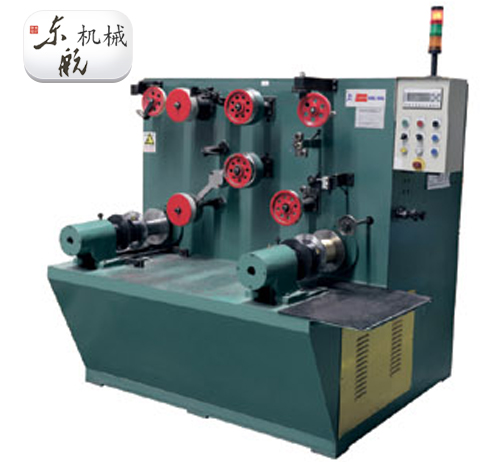

High-speed rewinding machine

Power source (main power source): 380V, 50HZ, 3-phase power source

 Gas/air source ：1-5Kgf/cm2

1Process technical paramters

1.1 Diameter of wire Rewound ：φ0.18-φ2.0mm

1.2 Maximum speed for rewinding ：10m/s

1.3 Pay-off and take-up spool： B40、B60、B80

1.4Winding displacement: driven by servo mtor and clamped by synchronous wheel, power rate of servo motor is 400W

1.5Spool clamping: pneumatic ejector

1.6Meter measuring precsion: 0.1% (Length deviation for the full wheel shall be controlled within +/-10 meter)

1.7 Noise control：<78dB(A)

1.8 Pay-off and take-up motor：YVPl00L1-4/B3(2.2KW)

1.9Brake pattern: electromagnetic brake (YSB1-B-5) or pneumatic disc brake

2Equipment mainframe

2.1Welded rack treated for vibration aging

2.2It’s equipped with door model for wire joint break detection and device for detecting any wire breaking or missing

2.3A separate meter measuring wheel is equipped.

2.4Tension control: counterweight constant tension control

2.5Electrical cabinets are installed inside the mainframe
