300/18 Tubular Stranding machine

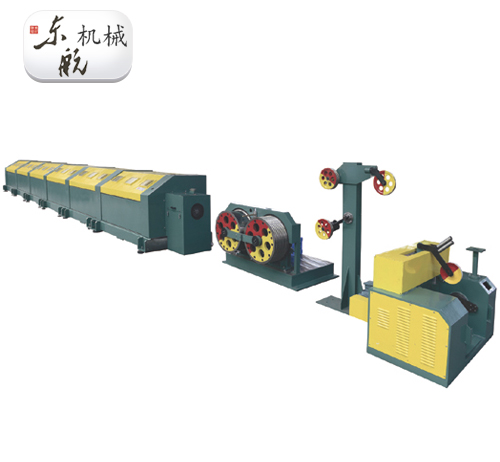

300/18 tubular stranding machine consists of pay-off section, mainframe, straightening rack, traction, tension rack, take-up section and electrical control system, it’s designed for stranding and cabling of copper wire, lead wire and steel wire.

Pay-off section

1.Standing type pay-off

2.Pay-off spool: 300-500 (subject to customer requirement)

3.Pay-off tension: chain dampering block

4.Clamping way: clamp mannually(ejector pin)

 Mainframe

1.Mainframe power: 30Kw

2.Lubrication: circulation oil lubrication

3.Bearing: large bearing

4.Number of spool:18

5.Spool specifications: 300

6.Pay-off tension: chain friction block

7.Protection door open and close under control of linear actuator, motor power: 0.25K

8.Pre-deformation: tower pre-dedformer

9.Filament diameter

Traction

1. Traction motor: 5.5Kw

2.Traction wheel diameter: φ600

3.Transimission: reduction gearbox, gear drive

4.Transimission: reduction gearbox, gear drive

Take-up

1.Take-up motor: 5.5Kw

2.Take-up clamp: cylinder dual ejection pin

3.Take-up spool: Maximum size: φ500

4.Winding displcement: roller screw driven by servo motor

5.Spool tray: movable up and down, driven by linear actuator
