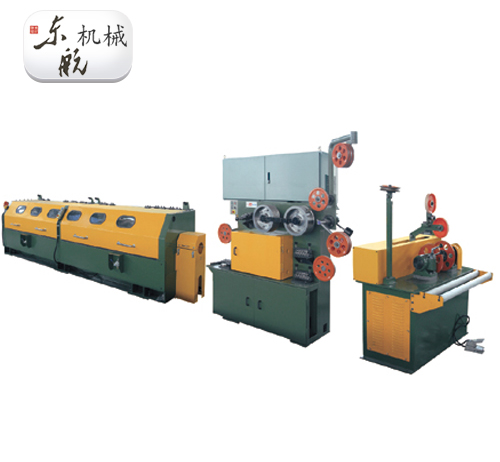

Tu1+6 tubular stranding machine

 Mainly used for manufacturing cord thread for OTR and caterpillar.

1.Product specifcations: 7x7x(φ0.20-φ0.25)+W、 7x〖3+9+15X(φ0.175-φ0.245)〗+W

2.Product diameter: φ2.0-φ4.84 (incl. wrapping wire)

3.Diameter of wrapping wire:φ0.15-φ0.245

4.Range of lay: 20-55

5.Pay-off section

5.1.Pay-off spool: spool sized at φ253

5.2.Pay-off tension: mechanical constant tension control, with chain dampering block

5.3.Coil out port: is equipped with contact break detection device

6.Mainframe

6.1.Mainframe power: 22KW high efficiency motor

6.2.Drum spool, 6 disc: spool sized at φ253

6.3.Spool: boat welding type, tempering

6.4.Spool installation: shaft insertion type

6.5.Tension control: mechanical constant tension control, with chain dampering block

6.6.Main motor brake: pneumatic disc brake

6.7.Pre-deformer: roller deformation

6.8.Drum maximum speed of revolution: 1800rpm

6.9.Main bearing: NSK bearing

6.10.Contact break detection device is installed under the drum

7Traction, wrapping and over-twist sections

7.1.Wrapping section

7.1.1Maximum speed of revolution of wrapping head: 15000rpm

7.1.2Wraping spool: 155

7.1.3Wrapping tension control: hysteresis

7.1.4Wrapping protection shell is equipped with noise enclosure, for inside, a sound insulation damping layer is designed.

7.2 Over-twist

7.2.1Over-twist pattern: four wheels single slot over-twister

7.2.2Over-twist motor: 0.37KW, equipped with gear motor.

7.3Horizontal traction wheel: 45#, surface WC spray coated, multiple slots wheel: CR12, entirely quenched up to HRC60-62

7.4 Support package: straightener

7.5Contact break detection device: is equipped at coil out port and location of traction wheel

8  Take-up section

8.1Take-up motor: 2.2Kw

8.2Take-up spool: B40，B60，B80

8.3Winding displacement: ball screw driven by 0.75kw servo motor
